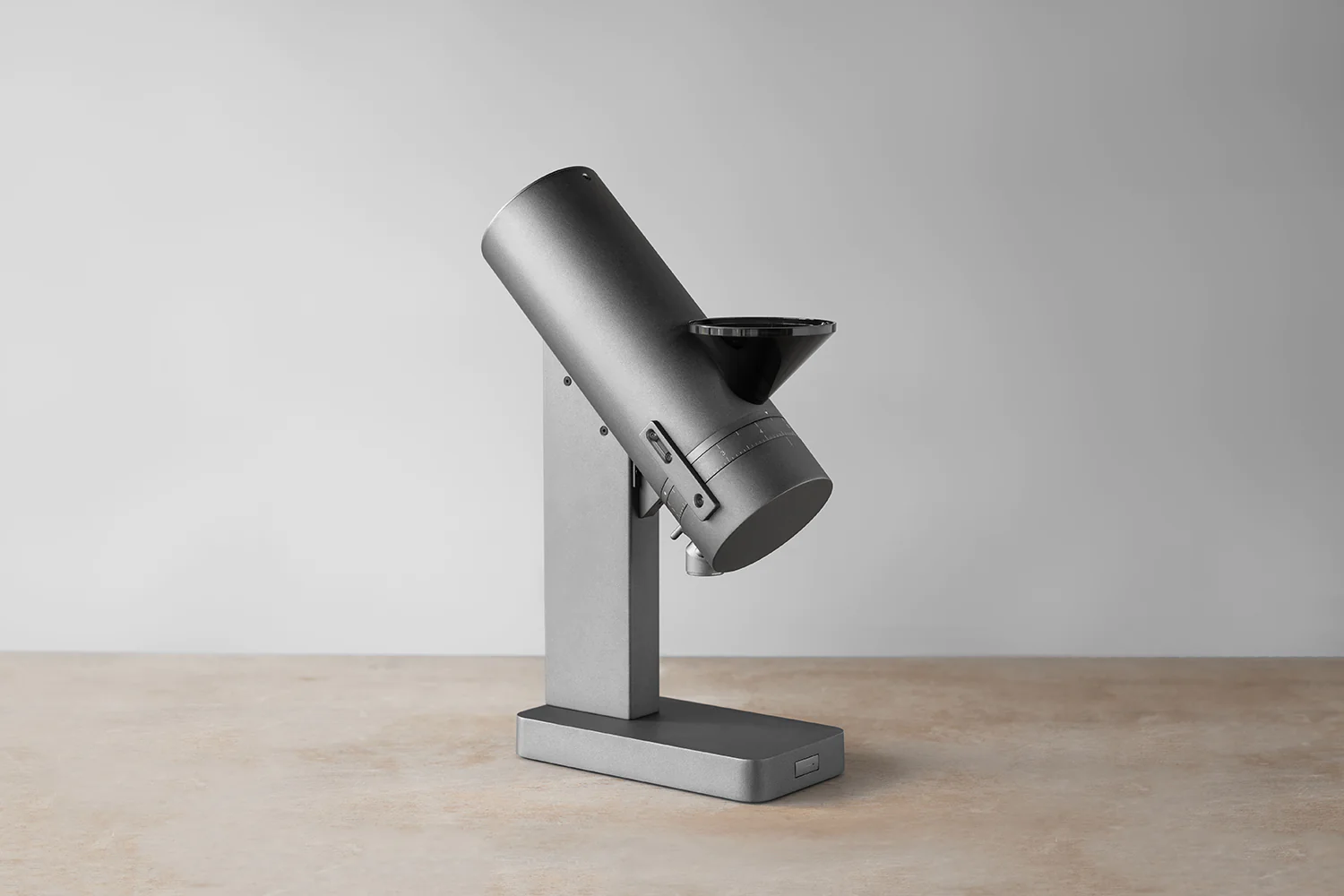

The Orbit is Acaia’s first coffee grinder designed with single-dosing in mind. It features an automatic cleaning purge to reduce retention and can be paired with an Acaia Lunar for grind-by-weight dosing. The Orbit is built with Acaia’s proprietary technology offering advanced control of RPM and energy savings. Also available as optional extras are matching Acaia Orbit ion beam and Acaia Orbit multipurpose hopper/adapter
Features:
- Single-dose grinding with minimum retention for a perfect shot without waste.
- Grind-by-weight with the Orbit companion app and Lunar scale for precise dosing every time.
- OEM Mazzer or 64mm SSP multi-purpose burrs.
- Stepless adjustment for precise grind size control, from light roast to dark roast coffee.
- Customisable grinding experience with the Orbit companion app: adjust grind speed, swap button actions, save profiles and more.
- Energy efficient design with low energy consumption.
- Precise manufacturing with tight tolerances for the best burr alignment.
- Thorough quality control with optical imaging software and manual measurements to ensure proper functionality, alignment, and grind quality.
Specifications:
- Product weight: 5600 g ± 10 g
- Product dimensions: W: 108 mm L: 266 mm H: 394 mm
- Rated voltage: 100 V-240 V
- Frequency: 50/60 Hz
- Motor: 200W Brushless DC Motor
- Material: Aluminium, PC, Stainless Steel
- Operating Ambient Temperature: 0 – 40 °C
- RPM Profile: 600-1500 Adjustable RPM Profile
- Connectivity: Bluetooth 5.0
- Warranty: 1 Year
Inclusions:
- Acaia Orbit Coffee Grinder x 1
- Power cable x 1
- Spout extender x 1
- 58 mm portafilter dosing cup (M) with magnetic pad x 1
- Lunar magnetic strip x 2
- Lunar magnetic strip application tool x 1
The Acaia Ion Beam solves the problem of static generated during the grinding process. Designed to work mounted on an Acaia Orbit Grinder or as a portable accessory for different grinders. The Ion Beam features an industrial-grade ion generator and is designed to significantly reduce static electricity produced during the coffee grinding process. This results in less retention, fewer flying chaff, and minimal clumping. The device achieves this by emitting a steady stream of charged ions, effectively neutralizing static charge accumulation encountered during grinding. Additionally, the Ion Beam is now enhanced with an infrared (IR) sensor for motion detection, so placing a container near it activates the ionizer. This ensures a smoother, more efficient grinding experience.
Features:
- Fast and concentrated ion generation: The Ion Beam is equipped with an industrial-grade ion generator. By generating a high concentration of ions in a small space, it effectively minimizes static build-up in coffee grounds.
- Motion sensing auto-start: The generator incorporates an IR sensor that detects the presence of an object placed within 5 cm. Placing an item like a dosing cup close to the IR sensor will activate the device, essentially streamlining the coffee grinding process for efficiency and ease of use.
- Negative and postitive static neutralisation: Emitting both positive and negative ions from different ends effectively neutralizes static electricity. It addresses either negative or positive static build-up.
- Better coffee grinding experience: The device reduces flying chaff, clumps, and retention, improving the coffee preparation process. This leads to a cleaner, more consistent grind.
- Portable and mountable: The Ion Beam’s design allows for use as a handheld device or mounting on a standard 1/4-inch tripod platform. This offers flexibility for both personal and professional use across different grinders.
Specifications:
- Model: AIM102
- Product Weight: 115 g ± 5 g
- Product Dimensions: Ø: 42 mm L: 127mm
- Material: PC
- Battery: Lithium-ion rechargeable 3.7 V 780 mAh
- Battery Life: 8 hours
- Attachment Thread: 1/4″-20
- Connectivity: Bluetooth 5.0
- Warranty: 1 Year
Inside the Package:
- Acaia Ion Beam x 1
- L-Shaped Mount x 1
- Cleaning brush x 1
- USB Type-C Cable x 1
Note: Tripod stand not included.
The Acaia Orbit Multi-Purpose Hopper serves as both a single-dose hopper for the Orbit coffee grinder, and an adapter for larger Acaia hoppers. The hopper includes a tight-fitting lid which has been designed to reduce noise and prevent dust and foreign matter from entering the hopper during the grinding process. The Multi-Purpose Hopper offers a range of capacity options, from 250g to 2kg, and it is constructed from anodized aluminium. It’s flexible sizing range makes it a great option for both batch grinding and precise grind-by-weight applications.
Specifications:
- Model: AA050
- Product Weight: 114g
- Product Dimensions: Φ:75mm, H:57mm
- Material: Aluminium
Includes:
- 1x Acaia Orbit Multi-Purpose Hopper
- 1x Screw
