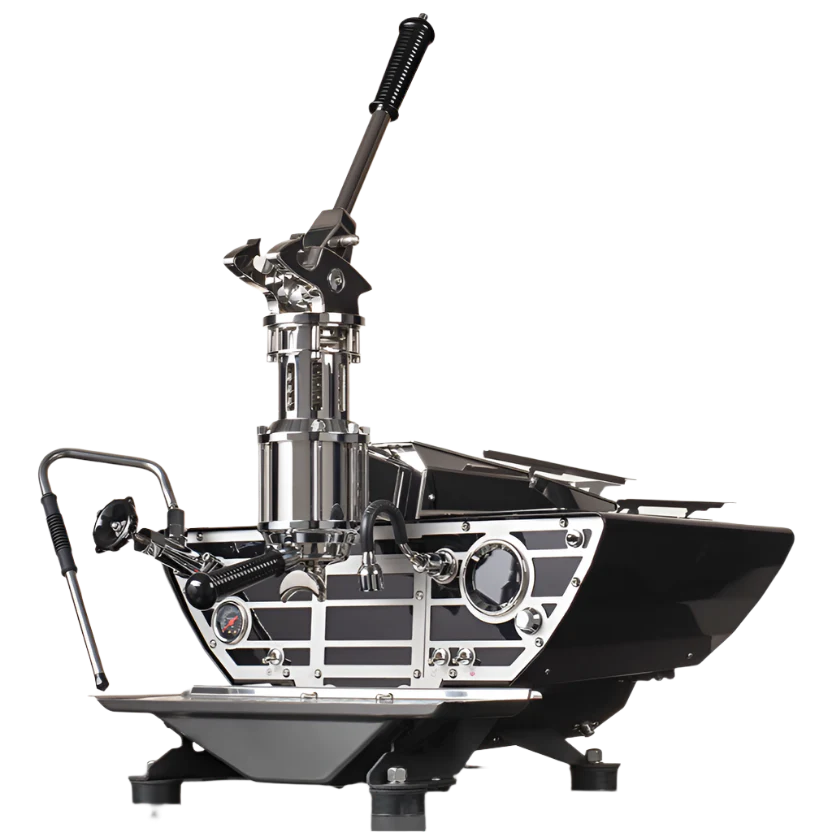

KDW Spiritello

The KDW Spiritello is a single-group lever espresso machine that transcends time, combining a classic spring-loaded lever group with every essential feature of modern espresso engineering. Designed by Kees van der Westen and built in the Netherlands, it is among the most beautiful espresso machines on the market, and among the most capable for serious home use.

The spring-loaded lever group delivers thorough pre-infusion and naturally diminishing extraction pressure, a mechanical expression of the ideal brewing curve, now enhanced with contemporary improvements for consistent, repeatable results. Setup requires only power and a filled 3.5L reservoir; all parts to connect directly to mains plumbing or drainage are included. The Zappo steam wand, a double-walled stainless tube with a PEEK four-hole tip, delivers non-burn handling and milk that barely adheres, making cleanup effortless.

A large 53mm round display with a push/turn knob provides access to all settings and ECO mode; a shot timer appears automatically whenever the lever is pulled.

Made to order — please allow 4–8 months for delivery. A 50% non-refundable deposit is required at the time of purchase.

The standard finish is crackle black. Alternate finishes are available through the Spiritello configurator at extra cost and POA — contact us to discuss your options.

Key features:

Lever Group

• Spring-loaded lever group: thorough pre-infusion and naturally diminishing extraction pressure
• Contemporary improvements for consistent, repeatable extraction results

Boilers

• 0.8L coffee boiler (316L stainless steel)
• 3.5L steam boiler (316L stainless steel)

Water Supply

• 3.5L removable stainless steel water tank
• Direct mains plumbing option: all connection parts included

Pump

• Internal quiet rotary pump

Steam

• Zappo steam wand: double-walled stainless tube, PEEK tip, 4 × 1.2mm holes
• Non-burn handling; minimal milk adhesion for easy cleanup

Controls

• 53mm round front display with push/turn knob: access to all settings and ECO mode
• Shot timer appears automatically whenever the lever is pulled

Power

• Normal or Reduced power mode: 2500W / 2050W at 230V 50Hz
• Ships with 15A plug
• 45kg without water
• Designed and built in the Netherlands by Kees van der Westen
